Dry Screw Vacuum Pump SH-DSV830

Vacuum Pump

SH-DSV830

SH-DSV (Oil free) Series

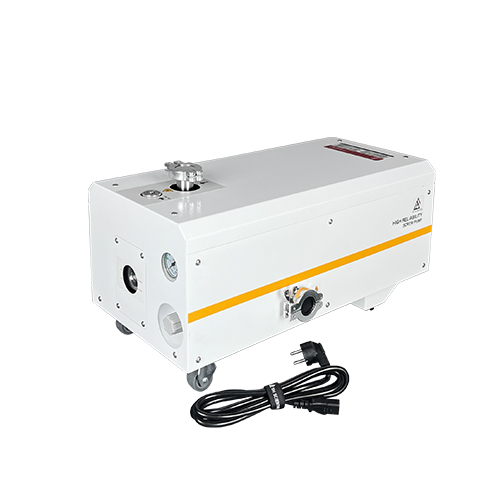

Dry Screw Vacuum Pump

  • Specification

  • Documents

  • Inquiry


  •

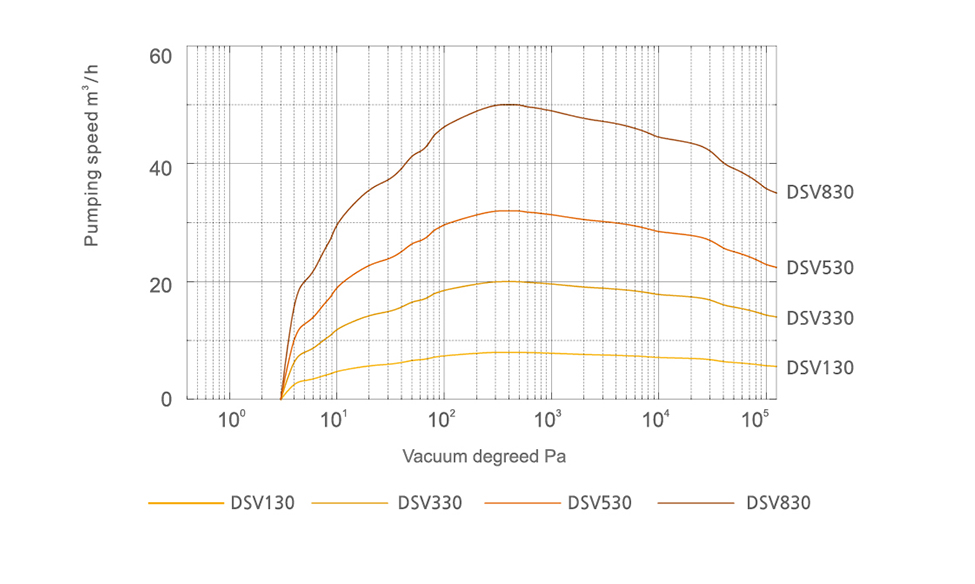

    Pumping Rate Curve

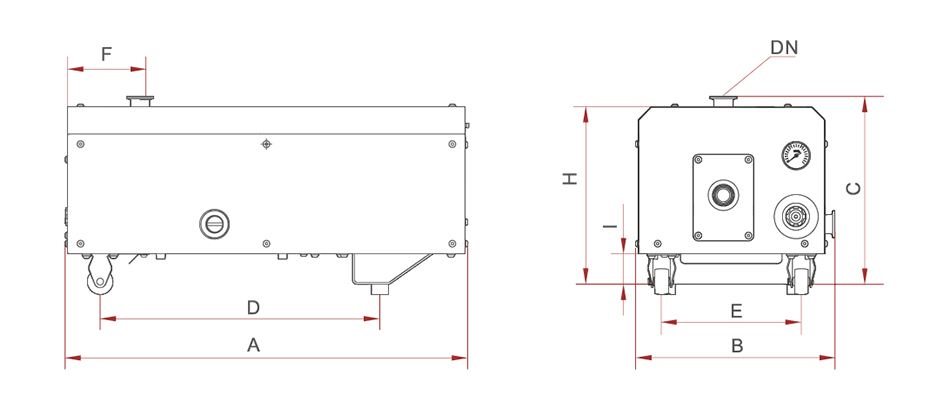

    Dimension




    Dimensions
    Model A B C D E F H I DN
    SH-DSV830 663 350 400 60 KF40
  • Model SH-DV830
    Pumping Speed 830L/min
    Extreme vacuum degree 3 Pa (2.25x10-2 Torr/3x10-2 mbar)
    Gas Purge Dry nitrogen/Dry compressed air 0~100 slm
    Pressure 0.05~0.1 Mpa
    Joint One touch fitting Ф6mm
    Motor Rated motor 2.2 kW
    Input power 380~415V, 3P
    Allowable voltage variation ± 10%
    Input frequency 50/60 Hz
    Control mode Inverter
    Rotating Speed 2850~4500 гpm
    Curret at ulimate pressure 1.5 A
    Peak current 6 A
    Control functions PID function YES
    Analog speed control YES
    Parallel control and monitoring Digital and modbus-rtu control
    Serial communication MODBUS-RTU

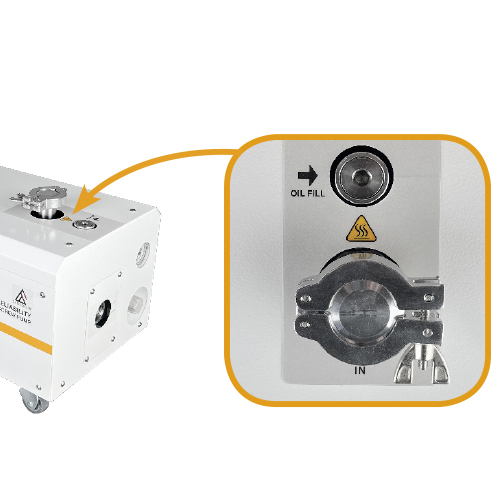

    Connection Inlet port 40 KF
    Exhaust port 25 KF
    Max water vapor pumping rate 200 g/h

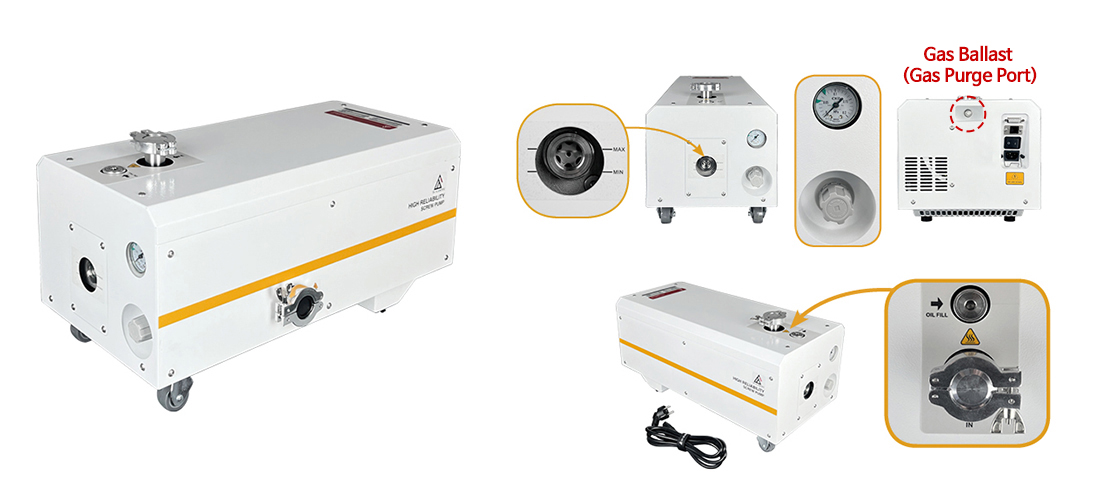

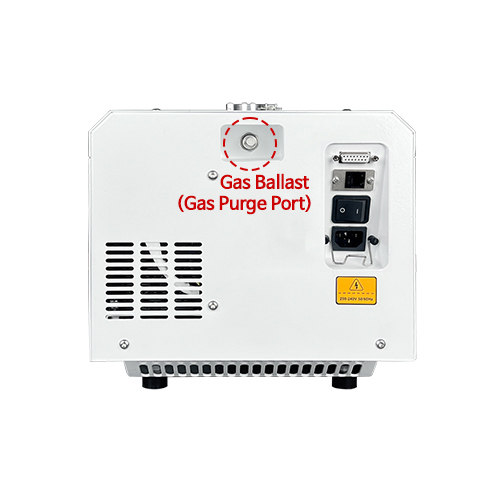

    Gas ballast Gas Purge Port
    Oil products PFPE
    Oil quantity 80 ml
    Overall dimensions 663x350x400mm / 23.10x13.78x15.74"
    Lifting ring M10 lifting ring (optional)
    Weight 75±5kg
    Noise ≤63 dB(A)
    Ambient temperature 5~40 °C
    Operating humidity Below 90%
    Storage temperature 0~50 °C
    Maintenance cycle 1 time/year
    Cooling mode Air cooling
    Working Conditions Clean codition /
    High steam condition Enable gas purging, pressure 0.07MPa; enable gas ballast
    Mildly corrosive condition Enable gas purging, pressure 0.1MPa
