Anti-Corrosion Chemical Vacuum Pump SH-CV20

Vacuum Pump

SH-CV20

Corrosion-Resistant · No Oil Leakage
Anti-Corrosion Chemical Vacuum Pump

  • Corrosion-Resistant Design: Corrosion resistance treatments on the pump body; Stainless steel springs and Fluorine rubber sealing rings.
  • No Oil Leakage: Converting dynamic seals (oil seals) to static seals.
  • Brushless DC Technology: Low noise. Energy-saving.
  • Anti Suck Back Design: Protecting vacuum system from oil contamination during an unexpected shutdown.
  • Integrated Design: Less spare parts. Easy to repair and maintain.
  • Oil Drainage Ball valve: Ensuring easy oil drainage.
  • Specification

  • Documents

  • Inquiry

  • • Option




    1. Oil Mist Trap with Filter
    2. VOT-4080




    1. Filter for Oil Mist Trap
    2. VOTF-4080 : VOT-4080

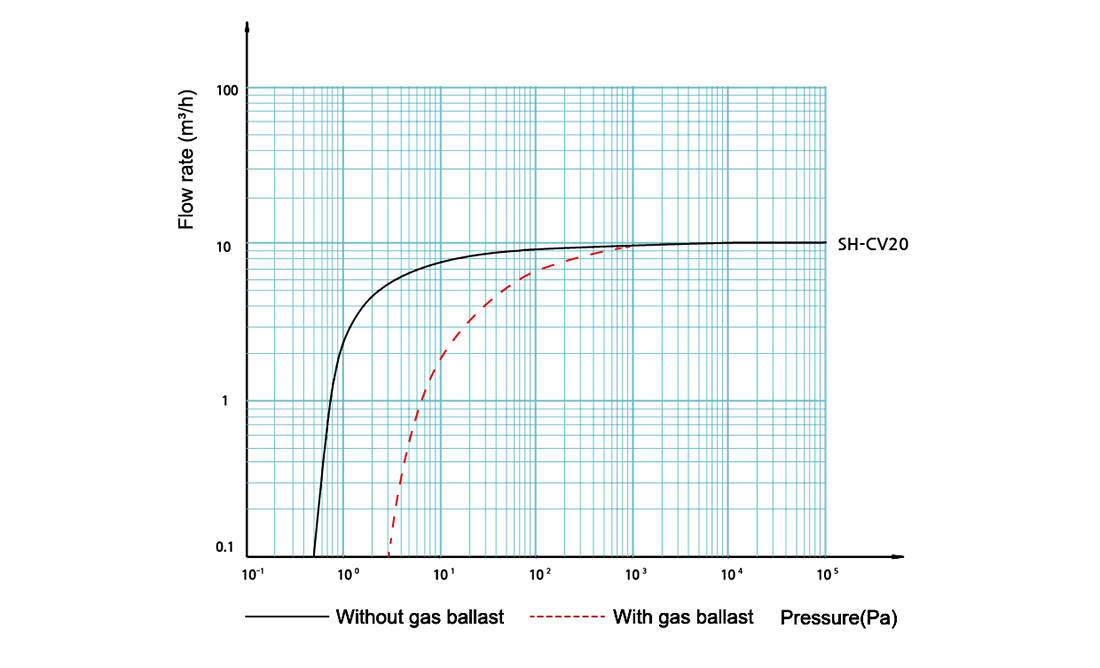

    Flow Rate Characteristic

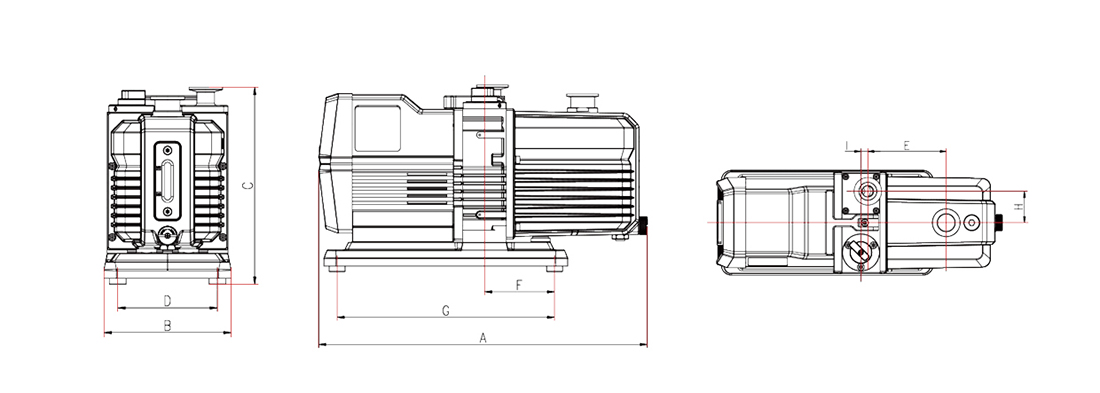

    Dimension




    Dimensions
    Model A B C D E F G H I
    SH-CV20 414 152 235 119 113.5 88 274 45.5 10
  • Model SH-CV20
    Pumping Speed(50/60Hz) 167L/min
    Ultimate Total Pressure without gas ballast 5x10-1 Pa (3.7 x 10-3 Torr)
    Ultimate Total Pressure with gas ballast 3 Pa (2.2 x 10-2 Torr)
    Power Supply Single Phase
    Power Rating 3/4 HP
    Inlet and Exhaust Port KF25
    Oil Capacity 0.75 L
    Motor Speed (50/60Hz) 1850 rpm
    Ambient Temperature 5~40℃
    Noise ≤52dB
    Ambient Temperature 5~40℃
    Noise ≤58dB
    Weight 15 kg
