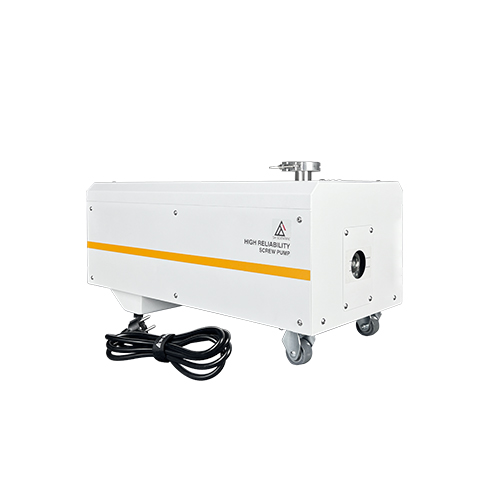

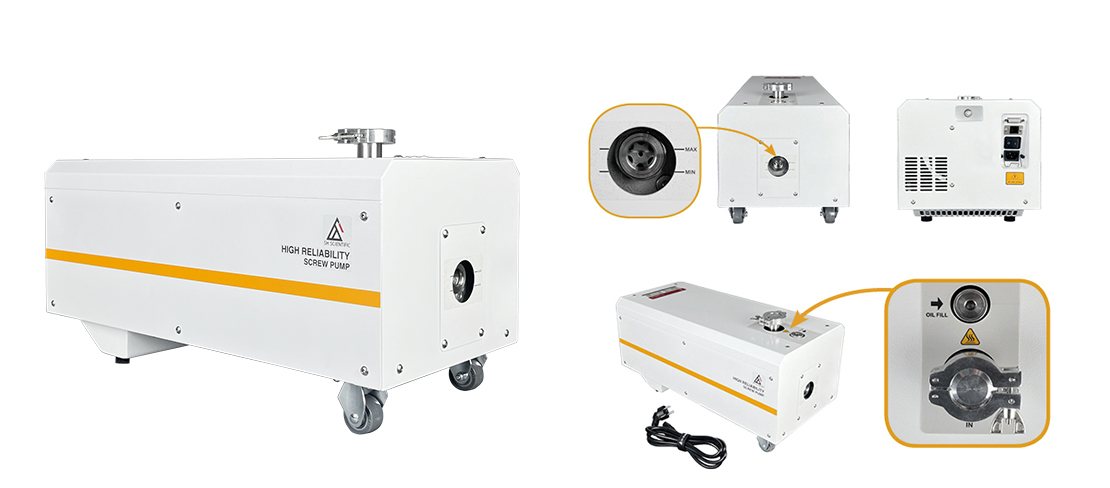

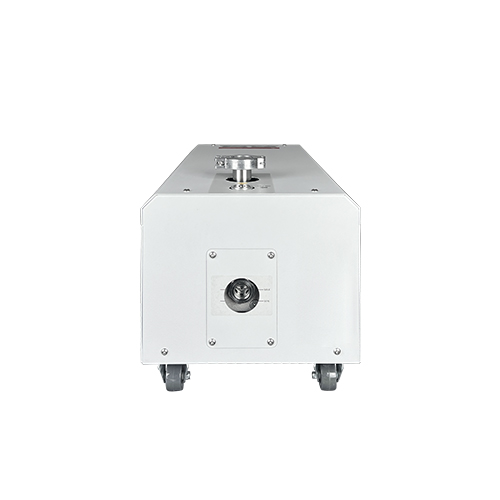

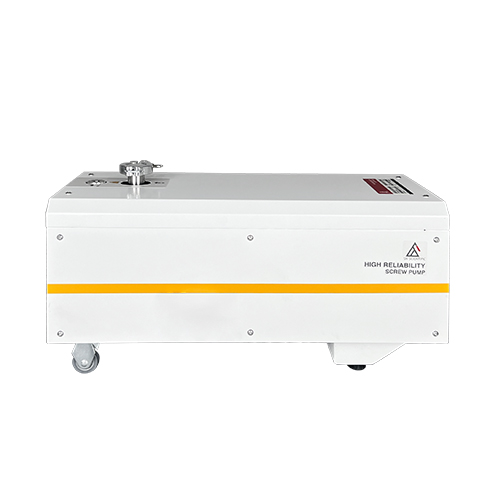

Dry Screw Vacuum Pump SH-DSV130

Vacuum Pump

SH-DSV130

SH-DSV (Oil free) Series
Dry Screw Vacuum Pump

  • Specification

  • Documents

  • Inquiry


  •

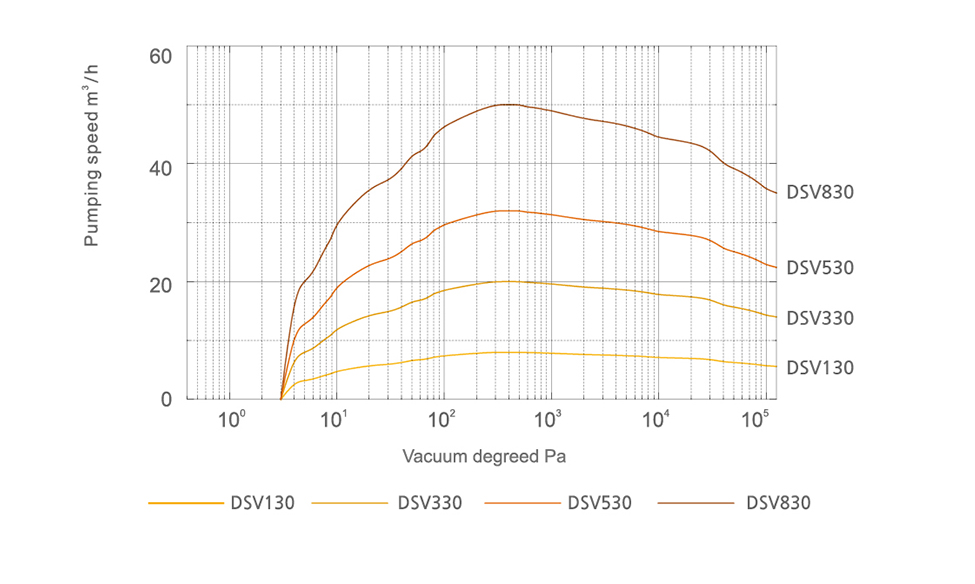

    Pumping Rate Curve

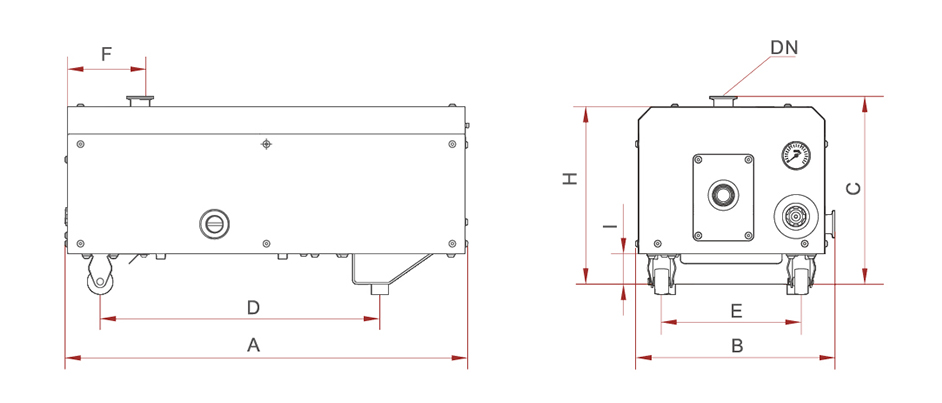

    Dimension




    Dimensions
    Model A B C D E F H I DN
    SH-DSV130 520 300 320 342 210 107 280 60 KF25
  • Model SH-DSV130
    Pumping Speed 130L/min
    Extreme vacuum degree 3 Pa (2.25x10-2 Torr/3x10-2 mbar)
    Motor Rated motor 1.8 kW
    Input power 200~240V, 1P
    Allowable voltage variation ± 10%
    Input frequency 50/60 Hz
    Control mode Inverter
    Rotating Speed 3000~4500 гpm
    Curret at ulimate pressure 6 A
    Peak current 13 A
    Control functions PID function YES
    Analog speed control YES
    Parallel control and monitoring Digital and modbus-rtu control
    Serial communication MODBUS-RTU
    Connection Inlet port 25 KF
    Exhaust port 16 KF
    Max water vapor pumping rate 134 g/h
    Oil products PFPE
    Oil quantity 80 ml
    Overall dimensions 520x300x320mm/20.47x11.81x12.59"
    Lifting ring M10 lifting ring (optional)
    Weight 38±5kg
    Noise ≤58 dB(A)
    Ambient temperature 5~40 °C
    Operating humidity Below 90%
    Storage temperature 0~50 °C
    Maintenance cycle 1 time/year
    Cooling mode Air cooling
    Working Conditions Clean codition /
    High steam condition Enable gas purging, pressure 0.07MPa; enable gas ballast
    Mildly corrosive condition Enable gas purging, pressure 0.1MPa
