SH-Vacuum Pump SH-VDC7

Vacuum Pump

SH-VDC7

SH-VDC (Low noise) Series
Dual stage low noise rotary vacuum pump

It is an energy-saving vacuum pump with a compact DC motor design. In particular , the low-noise feature is very suitable for a quiet laboratory room or for analysis laboratory room. (≤48db)

  • No work disturbance in laboratory room with the low-noise feature
  • Engergy saving with low power consumption
  • Simple and easy maintenance
  • Specification

  • Documents

  • Inquiry


  •

    • Option




    1. Oil Mist Trap with Filter
    2. VOT-1020 : V10, V20
    3. VOT-4080 : V40, V60




    1. Filter for Oil Mist Trap
    2. VOTF-1020 : VOT-1020
    3. VOTF-4080 : VOT-4080

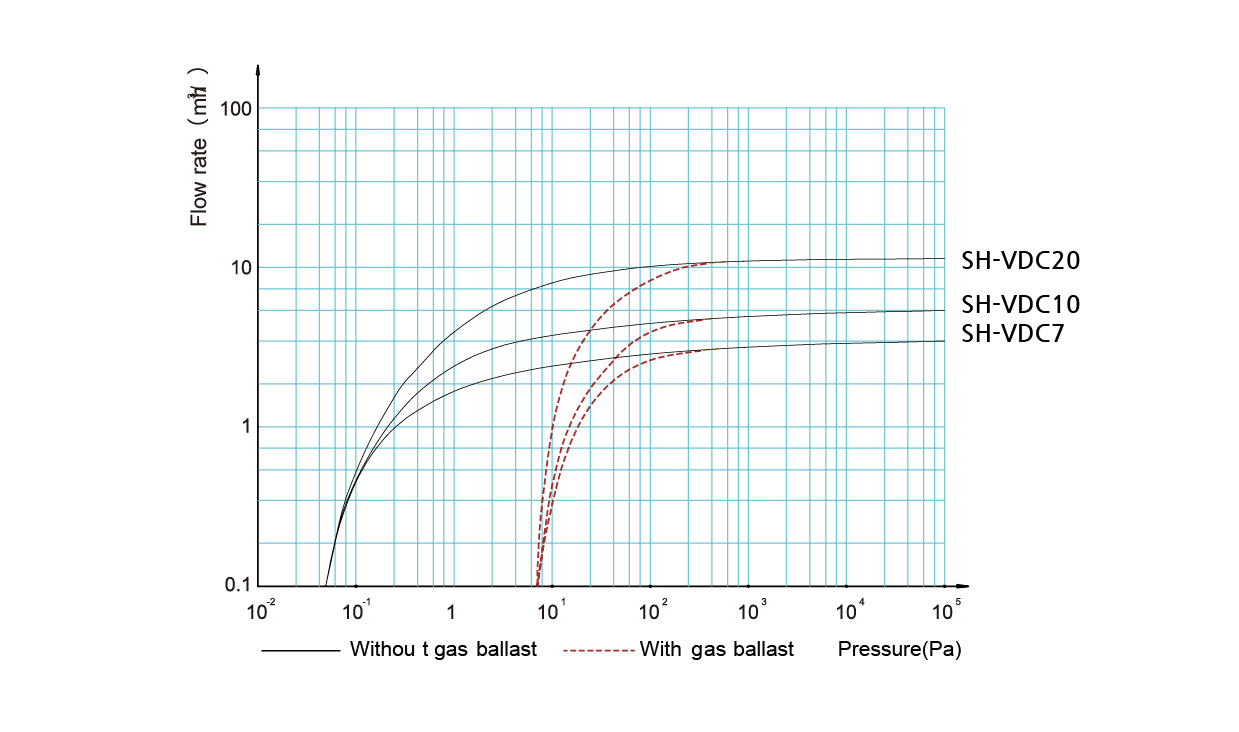

    Flow Rate Characteristic

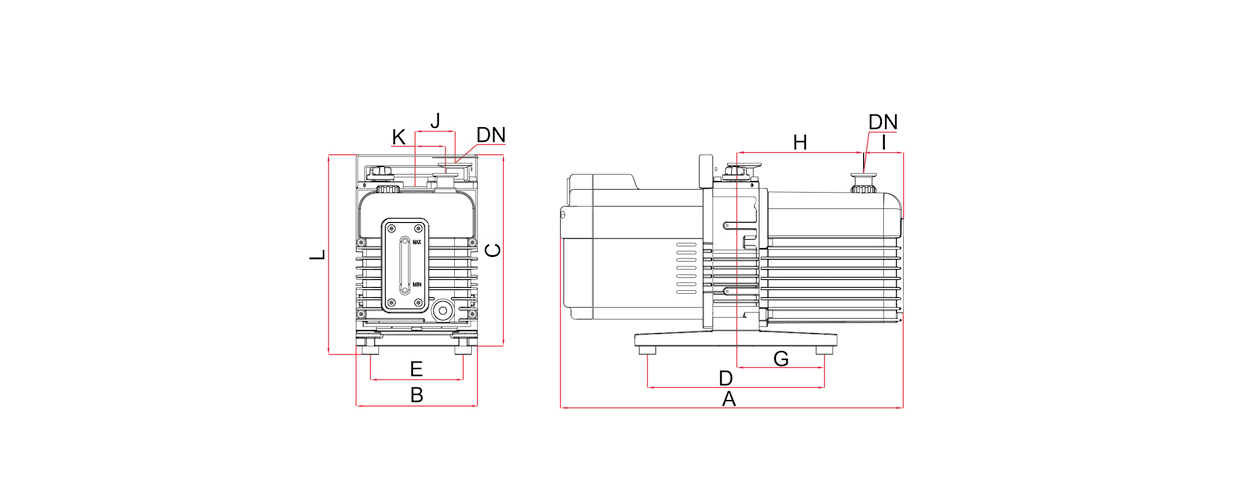

    Dimension




    Dimensions
    Model A B C D E G H I J K L DN
    SH-VDC7 420 144 207 210 110 126 154 45 45 34 / KF16/25
  • Model SH-VDC7
    Pumping Speed(50/60Hz) 66L/min
    Ultimate total pressure gas ballast close 5x10(-1) Pa (3.7x10(-3) torr)
    Ultimate total pressure gas ballast open 10 Pa (7.5x10(-2) torr)
    Power supply 220V,50/60Hz or 110V,50/60Hz
    Power rating(kw) 0.37(1 Phase)
    Inlet/Exhaust Flange KF16/25
    Oil capacity(L) 0.6~1
    Ambient temperature(℃) 10~40
    Noise level(dB) ≤50
    Weight(kg) 14.5
    Recommended for Vacuum Drying Ovens (SH-VDO-08NG, SH-VDO-30NG, SH-VDO-30NS) Tube Furnace All Packages
