High Vacuum Pump SH-HV100

Vacuum Pump

SH-HV100

High vacuum pump
Diffusion or Turbo Molecular Pump

Perfect design and performance

It is a high-performance SH-V Series V. It provides stable and strong durability with a cylinder sturcture and and an innovative oil curculation system. The automatic anti-sucking back valve and 2-shift gas ballast valve function ensure the highest reliability.

  • 2-shift gas ballast valve allows condesable vapors to be evacuated out of the pump.
  • With oil anti-sucking back prevention function, it provides the vacuum system from being contaminated with oil, it is easy to restart the pump after stopping running.
  • Forced oil circulation and supply system ensures stable running of the pump.

  • Specification

  • Documents

  • Inquiry


  •

    • Option

    1. Chiller - SH-WB-12CDR
    2. Air Compressor

    Application

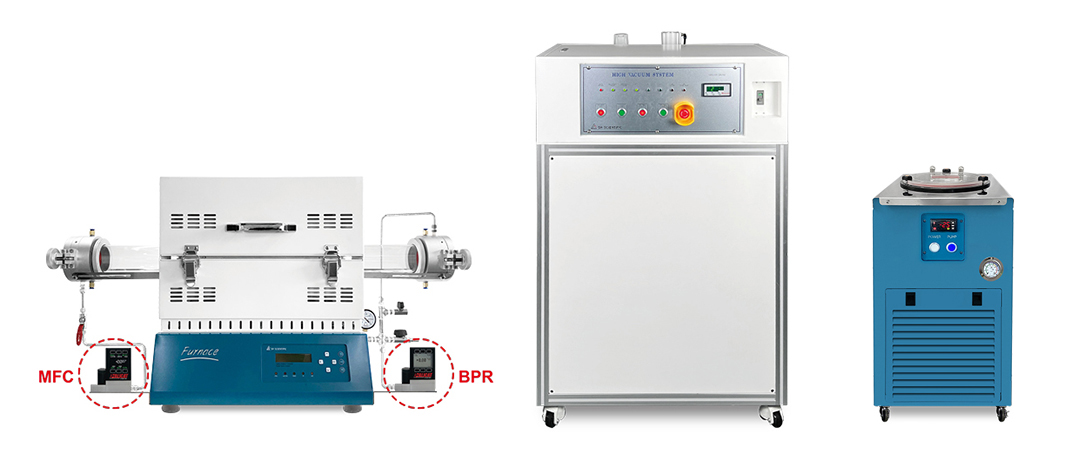

    Optimized for titanium annealing process when connected to tube furnace

    Reached vacuum by chamber shape and size (based on no-load condition)

    Vacuum Chamber Material and Shape Chamber Capacity and Size (mm) Reached vacuum and time Applicable Company
    Off-the-shelf Products
    Circular quartz tube furnace 49L, 250 dia x 1000 Length 0.00005 (5x10-5) torr/4~5 min SH-FU-250STG-WG
    Vacuum oven 216 L, 600(w) x 600(d) x 600(h) 0.0005 (5x10-4) torr/14~16 min SH-VDO216NG
    Vacuum muffler furnace 31 L , 315(w) x 315(d) x 315(h) 0.0005 (5x10-4) torr/50~60 min SH-FU-31MGV
  • Model SH- HV100
    Type Diffusion & Oil Rotary
    Pumping Speed(50/60Hz) 960L/min
    Ultimate Total Pressure 2.6x10-4 Pa(2.0 x 10-6 Torr)
    Power supply 220V 50/60Hz , 3Φ
    Power Rating 3.8KW

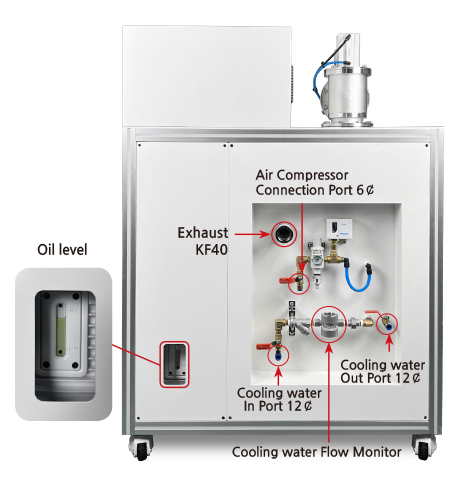

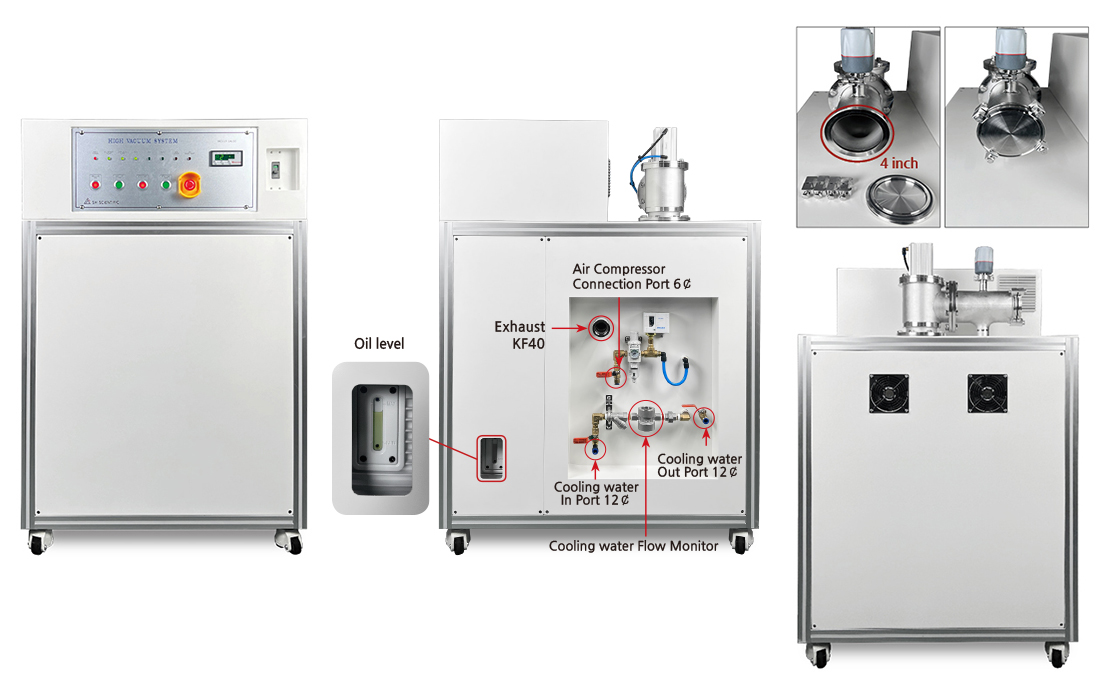

    Vacuum Port & Exhaust Vacuum : 4 inch / Exhaust : KF40
    Air In Port 6¢ One Touch Type (Pressure required at least 5kg)
    Water In/out Port 12¢ One Touch Type
    Diffusion Oil Capacity 0.5 L
    Roraty Oil Capacity 3.3 L ~ 4.5 L
    Ambient Temperature 5~40℃
    Noise ≤62dB
    Dimensions (WxDxH) 810x960x1310mm 31.89x37.79x51.57"
    Weight 215Kg
