SH-Vacuum Pump SH-V100

Vacuum Pump

SH-V100

Vacuum Pump
SH-V Series

Perfect design and performance

It is a high-performance SH-V Series V. It provides stable and strong durability with a cylinder sturcture and and an innovative oil curculation system. The automatic anti-sucking back valve and 2-shift gas ballast valve function ensure the highest reliability.

  • 2-shift gas ballast valve allows condesable vapors to be evacuated out of the pump.
  • With oil anti-sucking back prevention function, it provides the vacuum system from being contaminated with oil, it is easy to restart the pump after stopping running.
  • Forced oil circulation and supply system ensures stable running of the pump.
  • Specification

  • Documents

  • Inquiry

  • <

    • Option




    1. Oil Mist Trap with Filter
    2. VOT-1020 : V10, V20
    3. VOT-4080 : V40, V60
    4. VOT-100 : V100




    1. Filter for Oil Mist Trap
    2. VOTF-1020 : VOT-1020
    3. VOTF-4080 : VOT-4080
    4. VOTF-100 : VOT-100

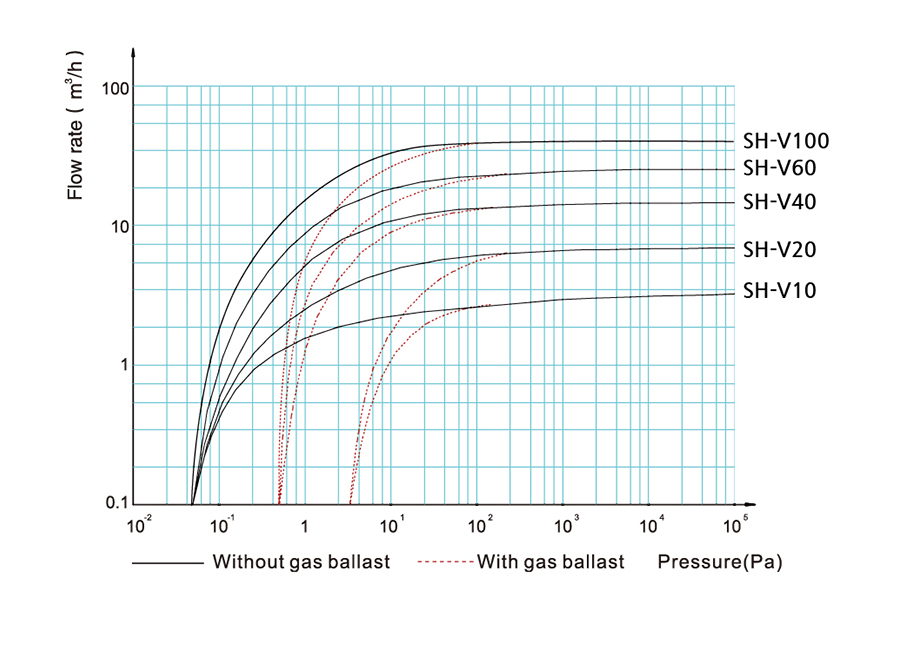

    Flow Rate Characteristic

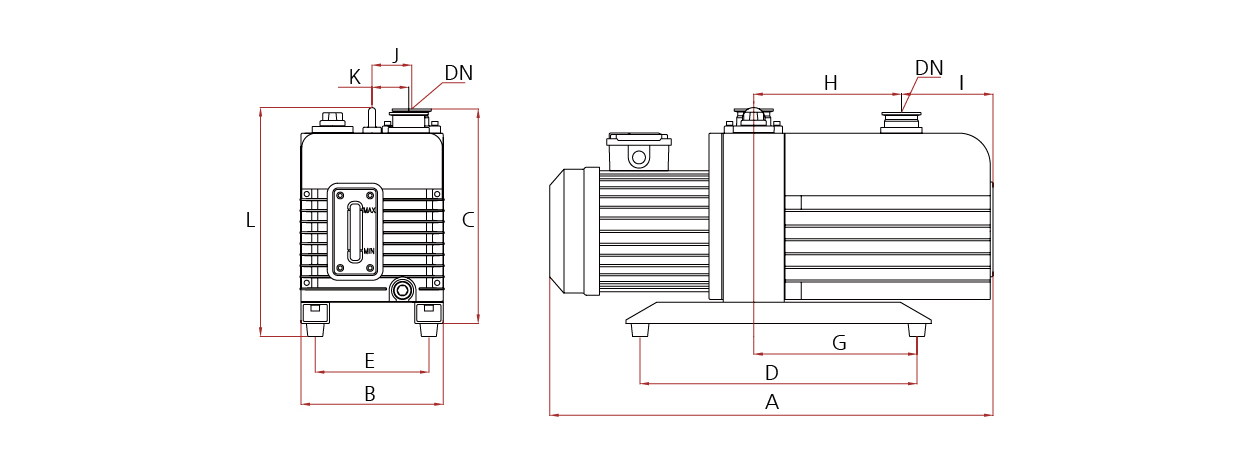

    Dimension




    Dimensions
    Model A B C D E G H I J K L DN
    SH-V100 730 234 358 396 190 200 223 157 69 55 390 KF-40
  • Model SH-V100
    Pumping Speed(50/60Hz) 960 L/min
    Ultimate total pressure gas ballast close 4x10(-1) Pa (3.0x10(-3) torr)
    Ultimate total pressure gas ballast open 8x10(-1) Pa (6.0x10(-3) torr)
    Power supply 220V, 3Φ, 50/60Hz or 380V, 3Φ, 50/60Hz
    Power rating(kw) 1.5(3 Phase)
    Inlet/Exhaust Flange KF 40
    Oil capacity(L) 3.3~4.5
    Ambient temperature(℃) 10~40
    Noise level(dB) ≤62
    Weight(kg) 62
