High Vacuum Pump SH-HV40

Vacuum Pump

SH-HV40

High vacuum pump
Diffusion or Turbo Molecular Pump

  • Wide product line up with various capacities
  • No oil back diffusion or exhaust.
  • Can be used repeatedly and continuously between atmospheric pressure and vacuum.
  • Low vibration, low noise, high efficiency
  • Simple and easy maintenance

  • Specification

  • Documents

  • Inquiry


  •

    • Option

    1. Chiller - SH-WB-5CDR(-30)
    2. Air Compressor

    Application

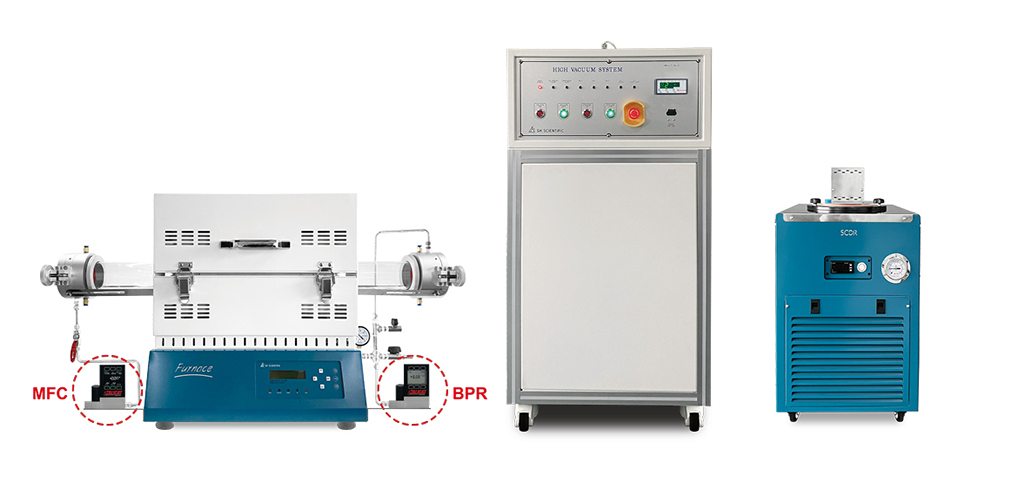

    Optimized for titanium annealing process when connected to tube furnace

    Reached vacuum by chamber shape and size (based on no-load condition)

    Vacuum Chamber Material and Shape Chamber Capacity and Size (mm) Reached vacuum and time Applicable Company
    Off-the-shelf Products
    Circular quartz tube furnace 7.8 L, 100dia x 1000 Lenth 0.00005(5x10-5) torr/5~7 min SH-FU-100STG-WG
    Vacuum oven 27 L, 300(w) x 300(d) x 300(h) 0.0005(5x10-4) torr/2~3 min SH-VDO30NG
    216 L, 600(w) x 600(d) x 600(h) 0.0005(5x10-4) torr/20~25min SH-VDO70NG
    Vacuum muffler furnace 10 L, 215(w) x 215(d) x215(h) 0.0005(5x10-4) torr/1.5~2hr SH-FU-10MGV
  • Model SH-HV40
    Type Diffusion & Oil Rotary
    Pumping Speed (50/60Hz) 312L/min
    Ultimate Total Pressure 2.6×10⁻⁴ Pa (2.0×10⁻⁶ Torr)
    Power Supply 220V 50/60Hz, Single Phase
    Power Rating 1.75KW

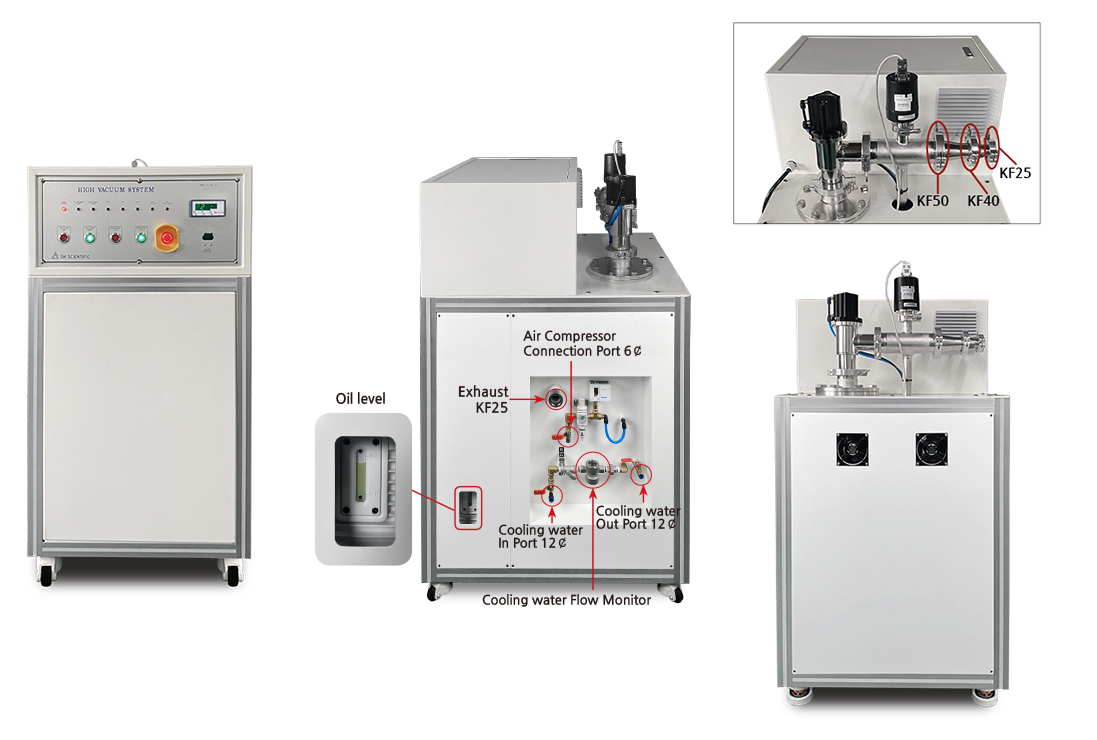

    Vacuum Port & Exhaust Vacuum: KF25, KF40, KF50 / Exhaust: KF25
    Air In Port 6 ¢ One Touch Type (Pressure required at least 5kg)
    Water In/out Port 12 ¢ One Touch Type
    Diffusion Oil Capacity 0.34 L
    Rotary Oil Capacity 0.9 L ~ 1.5 L
    Ambient Temperature 5~40℃
    Noise ≤58dB
    Dimensions (WxDxH) 600×760×1160mm 23.62×29.92×45.66"
    Weight 145Kg
