SH-Vacuum Pump SH-V60

Perfect design and performance

It is a high-performance SH-V Series V. It provides stable and strong durability with a cylinder sturcture and and an innovative oil curculation system. The automatic anti-sucking back valve and 2-shift gas ballast valve function ensure the highest reliability.

  • 2-shift gas ballast valve allows condesable vapors to be evacuated out of the pump.
  • With oil anti-sucking back prevention function, it provides the vacuum system from being contaminated with oil, it is easy to restart the pump after stopping running.
  • Forced oil circulation and supply system ensures stable running of the pump.
  • Specification

  • Documents

  • Inquiry


  •

    • Option




    1. Oil Mist Trap with Filter
    2. VOT-1020 : V10, V20
    3. VOT-4080 : V40, V60




    1. Filter for Oil Mist Trap
    2. VOTF-1020 : VOT-1020
    3. VOTF-4080 : VOT-4080

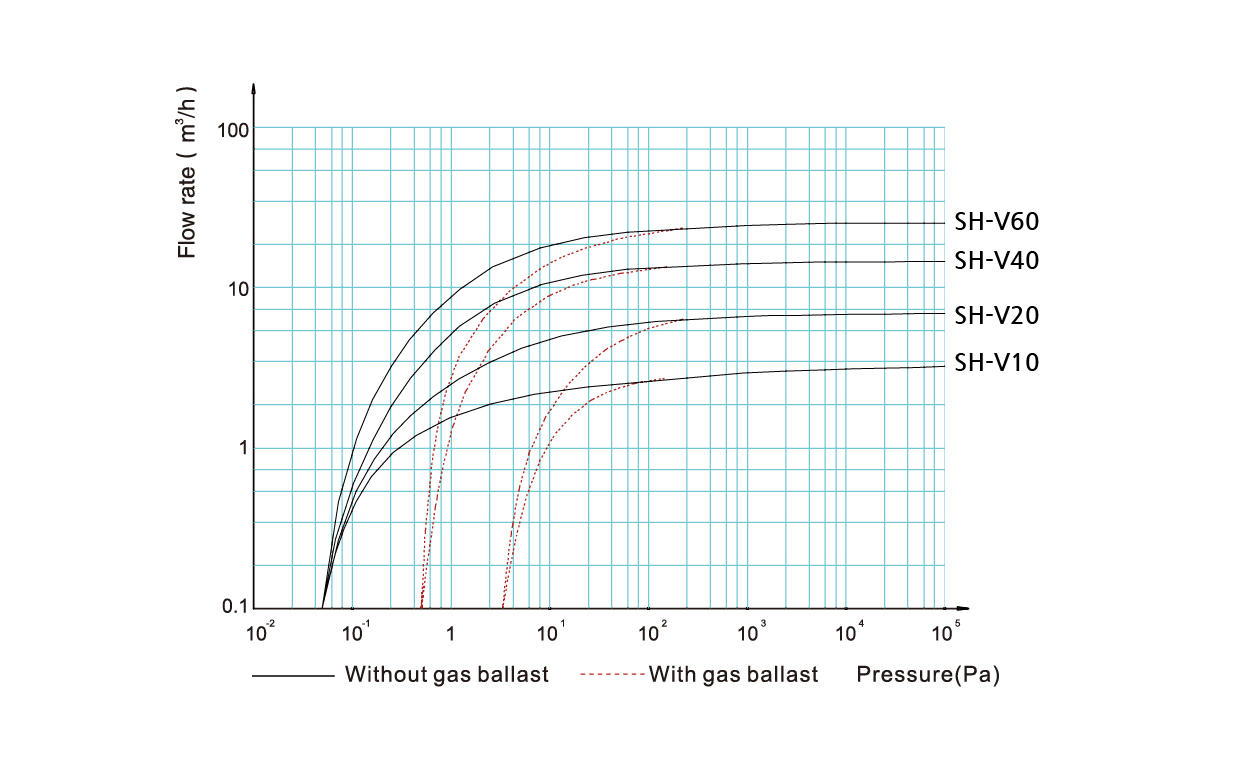

    Flow Rate Characteristic




    Dimension




    Dimensions
    Model A B C D E G H I J K L DN
    SH-V60 520 188 272 320 148 160 165 69 59 38 295 KF25
  • Model SH-V60
    Pumping Speed(50/60Hz) 474L/min
    Ultimate total pressure gas ballast close 4x10(-1) Pa (3.0x10(-3) torr)
    Ultimate total pressure gas ballast open 8x10(-1) Pa (6.0x10(-3) torr)
    Power supply 220V,1Φ, 50/60Hz
    Power rating(kw) 1.1(1 Phase)
    Inlet/Exhaust Flange KF25/40
    Oil capacity(L) 1.3~2.0
    Ambient temperature(℃) 10~40
    Noise level(dB) ≤58
    Weight(kg) 35
    Recommended for Vacuum Drying Ovens (SH-VDO-216NG)
