SH-Vacuum Pump SH-DV300

Vacuum Pump

SH-DV300

SH-DV (Oil free) Series
Oil free Scroll Vacuum Pump

  • Wide product line up with various capacities
  • No oil back diffusion or exhaust.
  • Can be used repeatedly and continuously between atmospheric pressure and vacuum.
  • Low vibration, low noise, high efficiency
  • Simple and easy maintenance
  • Specification

  • Documents

  • Inquiry

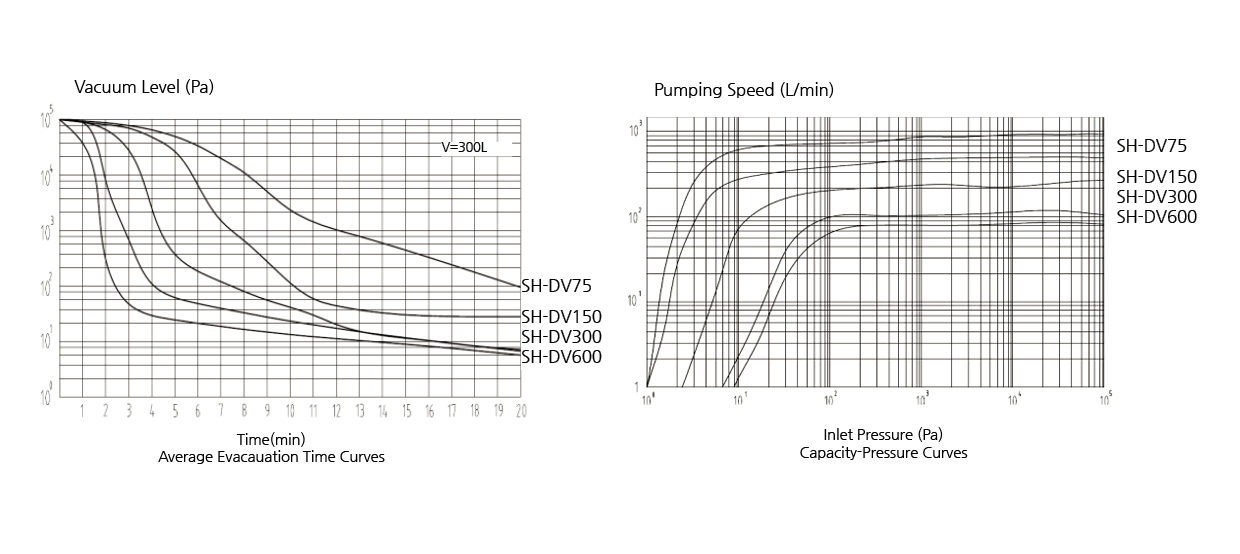

  • Performance curve

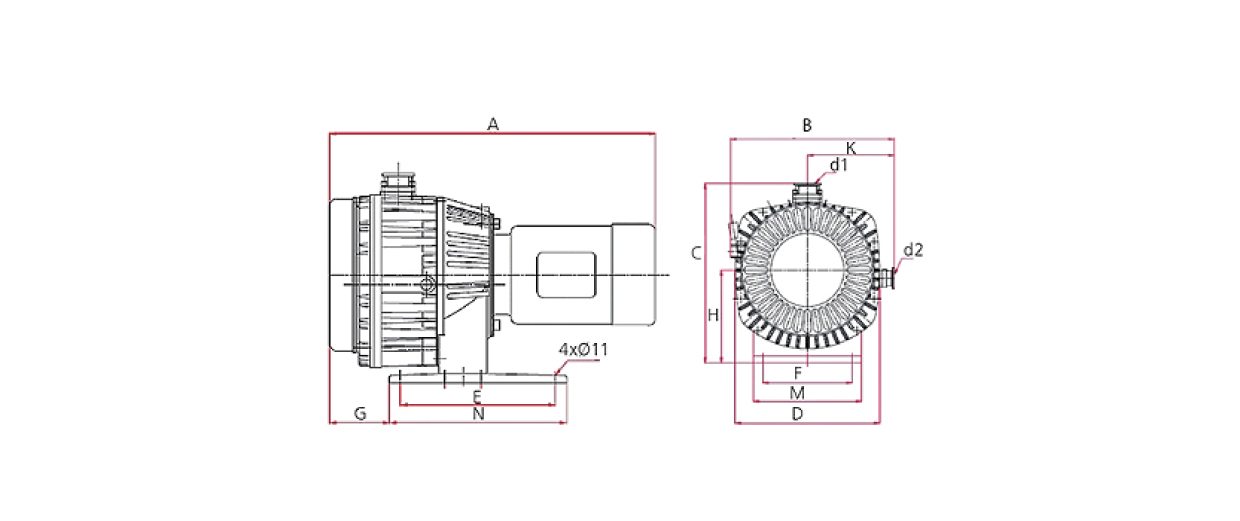

    Dimension




    Dimensions
    Model A B C D E F G H M N K d1 d2
    SH-DV300 492 268 324 226 252 163 87 174 192 288 140 KF25 KF16
  • Model SH-DV300
    Pumping Speed (50/60Hz) 305L/min
    Ultimate Pressure 2.5 Pa (≤1.9×10⁻² torr)
    Inlet/Exhaust Flange KF 25/16
    Motor (1 phase) Motor Power (kW) 0.75
    Voltage (VAC) 220V, 50/60Hz or 110V, 50/60Hz
    Speed (rpm) 50Hz/1425; 60Hz/1725
    Motor (3 phase) Motor Power (kW) 0.55
    Voltage (VAC) 50 Hz/200~230 or 380~415; 60 Hz/200~230 or 460
    Speed (rpm) 50Hz/1425; 60Hz/1725
    Ambient Temperature (℃) 5~40
    Noise Level (dB) ≤60
    Net Weight (kg) 1 phase 27
    3 phase 31
    Others With air flush
    Recommended for Vacuum Drying Ovens (SH-VDO-125NG, SH-VDO-216NG, SH-VDO-175NG, SH-VDO-252NG, SH-VDO-125NS)
